WTP Hanford - The Analytical LaboratoryThe Hanford Waste Treatment and Immobilization Plant will cover 65 acres with four nuclear facilities – Pretreatment, High-Level Waste Vitrification, Low-Activity Waste Vitrification and an Analytical Laboratory – as well as operations and maintenance buildings, utilities and office space.

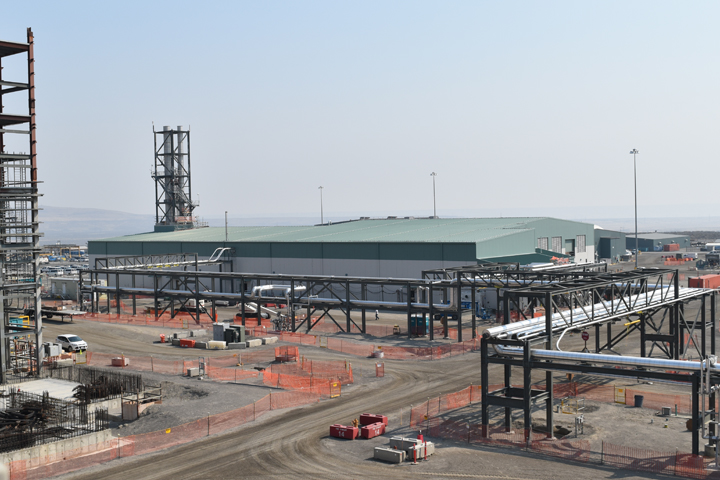

The Analytical Laboratory, also known as the Lab, will serve as a process link between the Pretreatment, High-Level Waste Vitrification and Low-Activity Waste Vitrification facilities. The Lab is 320 feet long and 180 feet wide, approximately the size of a football field, and 45 feet, or four stories, high.

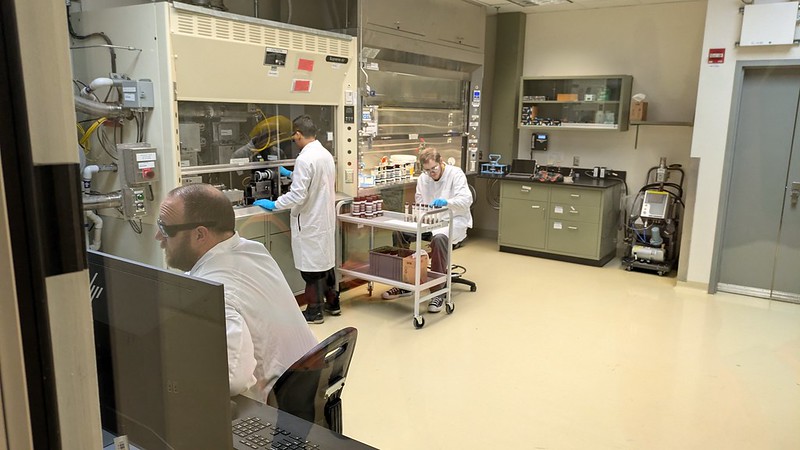

The Lab’s key function is to ensure that all glass produced by the Low-Activity and High-Level Waste Vitrification facilities meets all regulatory requirements and standards. Each year the Lab will analyze approximately 10,000 waste samples.

Samples will be used initially to confirm the correct glass-former “recipe” that will produce a consistent glass form. Once the recipe is identified, the glass-forming materials and the waste will be transferred to the Low-Activity Waste or High-Level Waste facility, as appropriate, for further processing. Samples will also be taken throughout the vitrification process to ensure a high-quality glass product and good process controls.

CONSTRUCTION FACTS

  • Size: 320 feet by 180 feet by 45 feet tall
  • Concrete: 12,000 cubic yards
  • Structural steel: 1,800 tons
  • Heating and ventilation ductwork: 314,500 pounds
  • Piping: 35,000 feet
  • Electrical cable: 172,000 feet
  • Craft hours to build: 635,000 hours

Back to Hanford WTP Overview.

A Closer Look Inside the Analytical Laboratory

ENVIRONMENTAL EMISSIONS STACK ASSEMBLY

Environmental Emissions Stack Assembly at WTP HanfordThe 68-foot stack assembly will exhaust emissions from the Analytical Lab’s ventilation systems, filtering radioactive and chemical contaminants from the air to ensure it meets strict regulations. Made of structural steel, the assembly contains three emission stacks and weighs approximately 140,000 pounds. The assembly sits atop the Analytical Lab, making it more than 119 feet tall.



HOT CELL DRAIN COLLECTION VESSEL

WTP Hanford - Hot Cell Drain Collection VesselThe underground hot cell collection vessel is a collection, containment, staging, transfer and secondary containment area for waste streams from the analytical services. The vessel contents are recycled to the Pretreatment Facility.





DRAIN COLLECTION VESSELS CELL AND FIRE WATER VAULT

Drain Collection Vessels Cell and Fire Water Vault - WTP HanfordThe floor and sink drain collection vessel also collects water overflow in the event of a fire. The area includes radioactive liquid discharge pumps, ventilation systems and specialized exhaust systems to prevent potential cross contamination among areas.





ABOVE GROUND AND EMBEDDED FOUNDATION PIPING

Above Ground and Ambedded Foundation Piping for WTP HanfordThe Analytical Laboratory contains piping for drainage and waste transfer. Piping may be above ground; within underground cells and vaults; or embedded in the thick concrete foundation. All process piping is nuclear-grade stainless steel or Hastelloy and is installed to exacting specifications using the most advanced welding and installation techniques.
